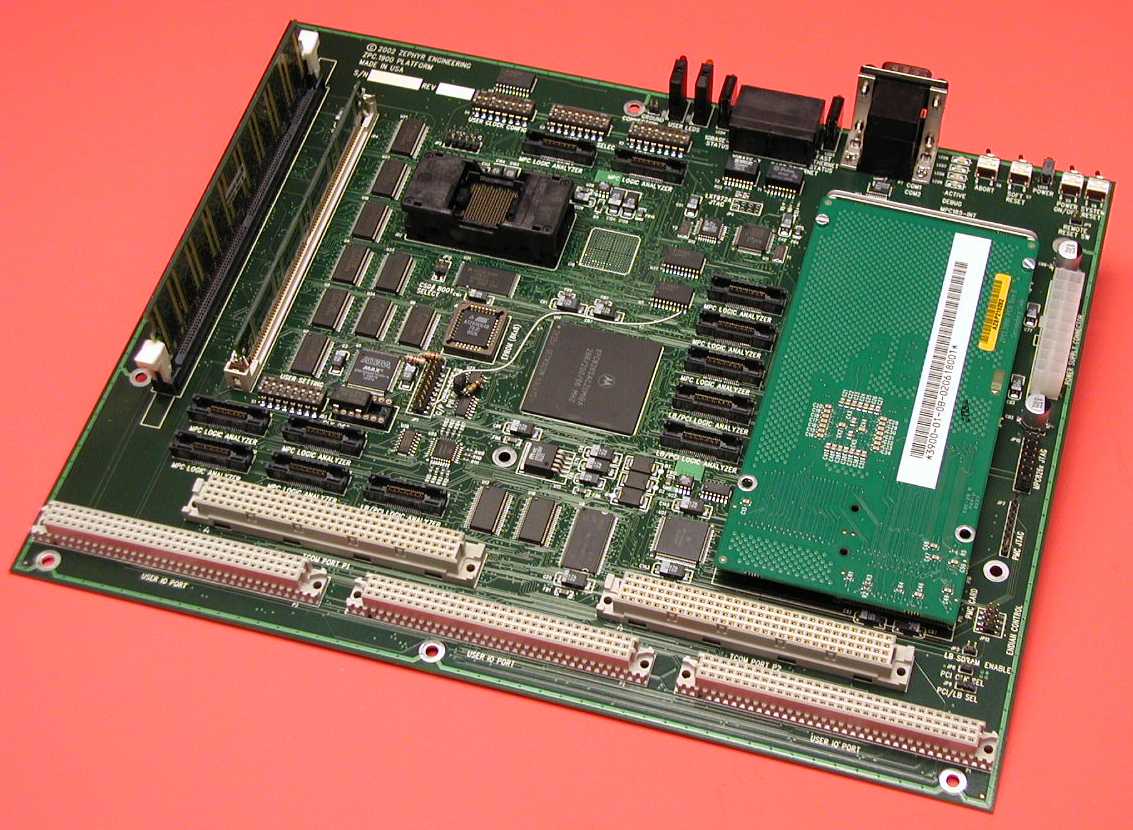

ZPC.1900 Security Processor Development Platform

The ZPC.1900 security processor development platform is a high-performance platform suitable for software development of security applications.

This ATX form-factor board has two on-board Motorola security processors (MPC180 and MPC185) and accepts one standard PMC card. It is ideal for use with the ZPCI.3900 MPC190 Security Processor PMC or the ZPCI.3901 MPC184 Security Processor PMC.

Features include:

  • MPC8265 CPU (MPC8260 compatible) with on-board MPC180 and MPC185 security processors
  • 32-bit 33/66 MHz PMC slot for MPC184 and MPC190 Security Processor Modules
  • On-board 2Mb flash ROM with SIMM socket for expansion to 18Mb (10Mb std)
  • DIMM socket for up to 128Mb SDRAM (64Mb std)
  • On-board 8Mb local-bus SDRAM (MPC8260 mode only)
  • Separate 8kb eeprom for boot configuration
The high performance of the ZPC.1900 security processor development platform makes it an excellent choice for your security processor applications.


ZPC.1900 Data Sheet (pdf)
